GBantistatic - Antistatic coating
Electrostatic charges are the reason for damages and pollution of many different parts made of plastics or glass. Our innovative nano coating GBantistatic protects these surfaces effectively against electrostatic charge. GBanstistatic has a defined surface resistance and can be processed either transparent or coloured.
Properties of the nano coating GBantistatic
- prevention of electrostatic charging on surfaces (according to DIN EN 6079-32-2)

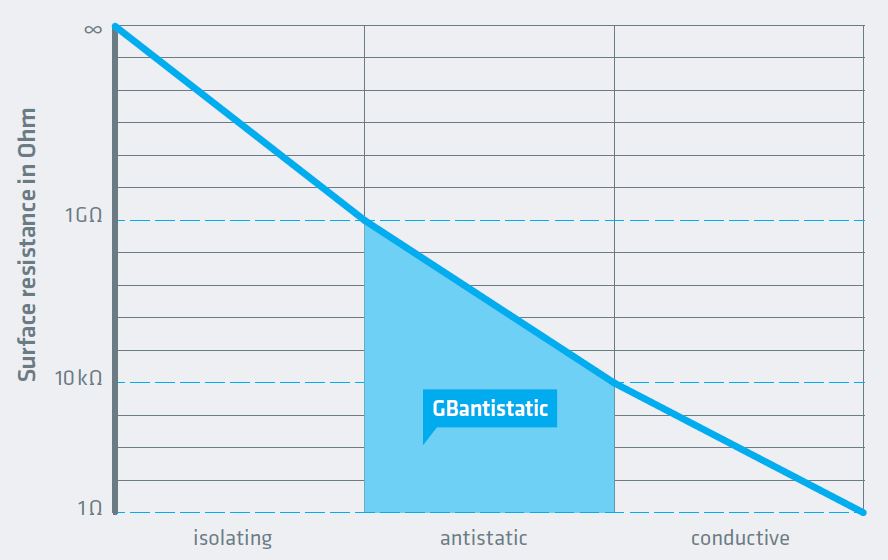

- specific surface resistance R = 100 kΩ ... 100 GΩ (according to DIN EN 60093:1993-12)
- maximum temperature load: 500 °C
- film thickness from 1.500 up to 2.500 nm
- no change in haptic quality of substrate
- scratch-resistant (scratch hardness according to DIN EN ISO 1518 depending on the substrate up to 20 N; pencil hardness according to DIN EN ISO 15184 up to 10 H)
- abrasive hardness (cross-cut test according to DIN EN ISO 2409)
- chemical-proof to customary detergents and disinfection methods
- mechanically flexible
Surfaces for antistatic coating
- plastics (PC, PMMA and more)
- glass (borosilicate glass, soda-lime-glass, quartz glass and more)
Dip coating or spraying - manual or automatically
The application process of the antimirobial coating can be matched individually to the geometry and the requirements of the surface.
- certified according to REACH and RoHS
- certified according to ISO 9001:2015; processes comply with IATF 16949
- environmental management conforms to ISO 14001
